PGas-41-H5 Portable Pump-priming Multiple Gas Detector


Sent Email : [email protected]

PGas-41-H5 portable pump-priming multiple gas detector is suitable for the detection of mixed gas concentrations in various industrial environments and special environments. Adopts imported electrochemical/infrared gas sensor and microcontroller technology, with fast response speed, high accuracy, stability and repeatability, the whole machine performance is in the domestic leading level, all its parameters can be customized by user and easy to operate. Built-in 4000mA high capacity polymer rechargeable battery, long stand-by; Using the 3.5 -inch full view IPS industrial color screen to perfectly show various technical indicators and the gas density, can view the historical data on the screen, with storage, data printing, data export, temperature and humidity testing, and many other functions.

  • Adopt latest ultra-low power 32 bit microprocessor with semiconductor nano technology, 24 bit ADC data acquisition chip, measurement accuracy is the highest level in the industry

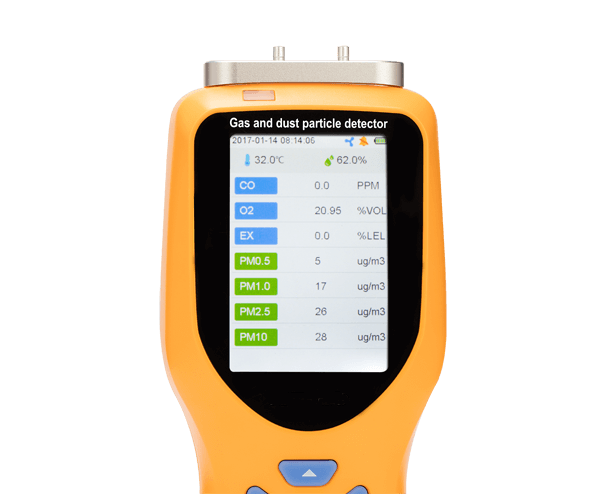

  • Using 3.5 inch full angle IPS industrial color screen, resolution is 320×480, perfectly display of various technical indicators and gas concentration values.
  • ppm、%vol、mg/m3、mg/L these four concentration units can be switched freely, and the high and low ranges can be automatically switched.
  • Can detect 1-5 different kinds of gases at the same time, any combination of sensors, Support PM2.5 dust particle sensor, temperature and humidity sensor, many other types of sensors.
  • With data storage function, can store 100000 groups of data, can view historical data on screen and export data.
  • With data printing function, can be printed with micro printer data.
  • With temperature and humidity detection function, which can detect the temperature and humidity of gas in the field or pipeline
  • Various modes can be adjusted: detection mode, storage mode, printing mode, display mode, and air pump mode.
  • The internal strong suction pump can work under the micro negative pressure environment. The reasonable design of the chamber ensures that the sensor is free from pressure interference.
  • It has overvoltage protection, overcharge protection, short circuit protection, anti-static interference, and anti-magnetic interference functions.
  • All software automatic calibration, sensor up to 6 levels of target calibration function, to ensure the accuracy and linearity of measurement, and has data recovery function.
  • Chinese / English operation menu, simple and practical
  • With temperature compensation function, instrument dust-proof and waterproof design, equipped with dust filter, can be used in all kinds of bad situations.
Detecting Gas Range Resolution   Detecting Gas Range Resolution
EX 0-100%LEL 0.1%LEL N2 0-100%vol 0.01%vol
CH4 0-100%LEL

0-50000ppm

0-100%Vol

0.1%LEL

1ppm

0.01%Vol

NO 0-100ppm

0-250ppm

0-2000ppm

0-5000ppm

0.01ppm

0.1ppm

1ppm

1ppm

O2 0-1000ppm

0-5000ppm

0-10000ppm

0-50000ppm

0-5%Vol

0-30%Vol

0-100%Vol

1ppm

1ppm

1ppm

1ppm

0.01%Vol

0.01%vol

0.01%Vol

NO2 0-20ppm

0-100ppm

0-1000ppm

0-5000ppm

0.01ppm

0.01ppm

0.1ppm

1ppm

SO2 0-1/10/20/100/500/1000/2000/5000/10000/40000ppm 0.01ppm

(0-100ppm)

0.1ppm(0-1000ppm)

1ppm(0-1000ppm)

NOx 0-100ppm

0-1000ppm

0-5000ppm

0.01ppm

0.1ppm

1ppm

CO 0-100ppm

0-500ppm

0-1000ppm

0-2000ppm

0-40000ppm

0-100%Vol

0.01ppm

0.1ppm

0.1ppm

1ppm

1ppm

0.01%Vol

CL2 0-10ppm

0-50ppm

0-200ppm

0-1000ppm

0-5000ppm

0.001ppm

0.01ppm

0.1ppm

1ppm

1ppm

CO2 0-2000ppm

0-5000ppm

0-10000ppm

0-50000ppm

0-100000ppm

0-20%Vol

0-50%Vol

0-100%Vol

1ppm

1ppm

1ppm

1ppm

1ppm

0.01%Vol

0.01%Vol

0.01%Vol

NH3 0-100ppm

0-200ppm

0-1000ppm

0-5000ppm

0-10000ppm

0-50000ppm

0.01ppm

0.1ppm

0.1ppm

1ppm

1ppm

1ppm

CH2O 0-10ppm

0-20ppm

0-50ppm

0-500ppm

0.01ppm

0.01ppm

0.01ppm

0.1ppm

H2 0-1000ppm

0-5000ppm

0-40000ppm

0-10%Vol

0-100%Vol

0.1ppm

1ppm

1ppm

0.1%Vol

0.1%Vol

O3 0-1ppm

0-5ppm

0-50ppm

0-100ppm

0-200ppm

0-1000ppm

0-5000ppm

0-30000ppm

0.001ppm

0.01ppm

0.01ppm

0.01ppm

0.1ppm

0.1ppm

1ppm

1ppm

HCN 0-30ppm

0-100ppm

0.01ppm

0.01ppm

H2S 0-10ppm

0-50ppm

0-100ppm

0-200ppm

0-1000ppm

0-2000ppm

0-5000 ppm

0-10000ppm

0.001ppm

0.01ppm

0.01ppm

0.1ppm

0.1ppm

1ppm

1ppm

1ppm

HCL 0-20ppm

0-200ppm

0-1000ppm

0-3000ppm

0.01ppm

0.1ppm

0.1ppm

1ppm

CLO2 0-1ppm

0-50ppm

0-100ppm

0.001ppm

0.01ppm

0.01ppm

PH3 0-5 ppm

0-20 ppm

0-2000 ppm

0-4000 ppm

0.001ppm

0.01ppm

1ppm

1ppm

ETO 0-100ppm

0-1000ppm

0-30000ppm

0.01ppm

0.1ppm

1ppm

C3H3N 0-50ppm

0-100ppm

0-1000ppm

0.01ppm

0.01ppm

0.1ppm

COCL2 0-1ppm 0.001ppm CH2O2 0-50ppm 0.01ppm
SiH4 0-50ppm 0.01ppm CH3HS 0-100ppm 0.01ppm
F2 0-1ppm

0-10ppm

0-100ppm

0.001ppm

0.01ppm

0.1ppm

I2 0-50ppm 0.01ppm
HF 0-10ppm

0-50ppm

0.01ppm

0.01ppm

C3H8 0-20000ppm

0-100%Vol

1ppm

0.01%Vol

HBr 0-50ppm 0.01ppm CS2 0-50ppm 0.01ppm
B2H6 0-10ppm 0.001ppm C4H10 0-20000ppm 1ppm
AsH3 0-1ppm

0-10ppm

0.001ppm

0.01ppm

C5H12 0-20000ppm 1ppm
GeH4 0-2ppm

0-20ppm

0.001ppm

0.01ppm

C3H6 0-20000ppm 1ppm
N2H4 0-1ppm

0-300ppm

0.001ppm

0.1ppm

C6H14 0-10000ppm 1ppm
TNT 0-50mg/m3 0.01mg/m3 C2H6 0-30000ppm 1ppm
N2H4 0-10ppm

0-50ppm

0.001ppm

0.01ppm

SF6 0-1000ppm 1ppm
SO2F2 0-1000ppm 0.1ppm VOC

VOC

C6H6

0-10ppm

0-50ppm

0-100ppm

0-1000ppm

0-2000ppm

0-6000ppm

0.01ppm

0.01ppm

0.1ppm

0.1ppm

1ppm

1ppm

C2H2 0-100%LEL

0-100ppm

0-1000ppm

0-10ppm

0.1%LEL

0.01ppm

0.1ppm

0.01ppm

C2H3CL 0-100ppm

0-1000ppm

0.01ppm

0.1ppm

C2H4 0-10ppm

0-50ppm

0-100ppm

0-500ppm

0-1000ppm

0-2000ppm

0-5000ppm

0-10000ppm

0-30000ppm

0.01ppm

0.01ppm

0.01ppm

0.1ppm

0.1ppm

1ppm

1ppm

1ppm

1ppm

C2HCL3 0-10ppm/0-50ppm/0-1000ppm0-2000ppm0-6000ppm

0.01ppm

0.01ppm

0.1ppm

1ppm

C2H4O 0-10ppm

0-100ppm

0.01ppm

0.01ppm

C2CL4 0-200ppm 0.1ppm
C2H6O 0-100%LEL

0-100ppm

0-2000ppm

0-10000ppm

0-50000ppm

0.1%LEL

0.01ppm

1ppm

1ppm

1ppm

CH3Br 0-25000ppm 1ppm
CH4O 0-100%LEL

0-100ppm

0-2000ppm

0-10000ppm

0-50000ppm

0.1%LEL

0.01ppm

1ppm

1ppm

1ppm

Ar 0-100%vol 0.01%vol
(Not listed in the form please call us)
Detecting gas: Support 1-5 sensors, all kinds of gas sensors (imported electrochemistry, infrared sensors and PID are optional).
Measure range: According to gas sensor.
Resolution: According to gas sensor.
Dust particles: Can choose PM2.5 laser dust particle sensor (0.3um、1um、2.5um、10um)
Temperature and humidity: Temperature: -40 ~ 120℃, humidity: 0-100%RH
Detection mode: Pump suction, built-in strong pump, flow:500-1000mL/min adjustable, can work in a micro negative pressure environment
Accuracy: ≤±3% (Actual accuracy, higher precision depends on specific sensors) Liner error: ≤±1%
Response time: ≤20s (T90) Zero drift: ≤±1% (F.S/year)
Recovery time: ≤20s Repeatability: ≤±1%
Detection mode: Real-time detection and timing detection can be set up
Storage mode: Real time storage and timed storage can be set up; 100000 groups of data can be stored to view historical data on the screen.
Print mode: Optional printer data can be set up: printing cycle, automatic printing, manual printing.
Ex-mark: ExdII CT6 (intrinsically safe) Shell material: ABS+PC
Protection grade: IP66 Working temperature: -30 ~ 60℃
Power supply: 4000Ma rechargeable polymer battery Working humidity: ≤95%RH, non-condensing
Size & weight: 220*85*55 mm (L×W×H)

0.5 Kg (net weight of instrument)

Working pressure: -30Kpa ~ 100Kpa

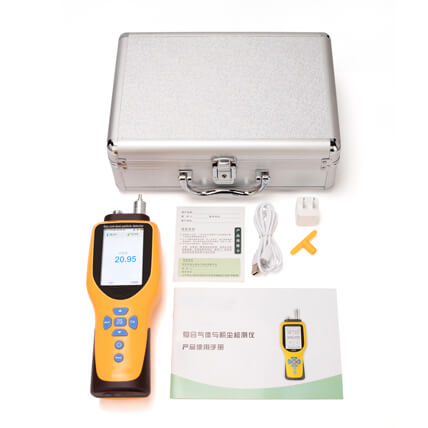

Standard accessories: Dust filter, 1 meter 4*6mm hose, 1 instrument box, specification, certificate, USB charger, calibration hood.
Optional accessories: ① A mini printer
② PM2.5 laser dust particle sensor

③ other types of sensors that can be customized

④ Water gas filter
