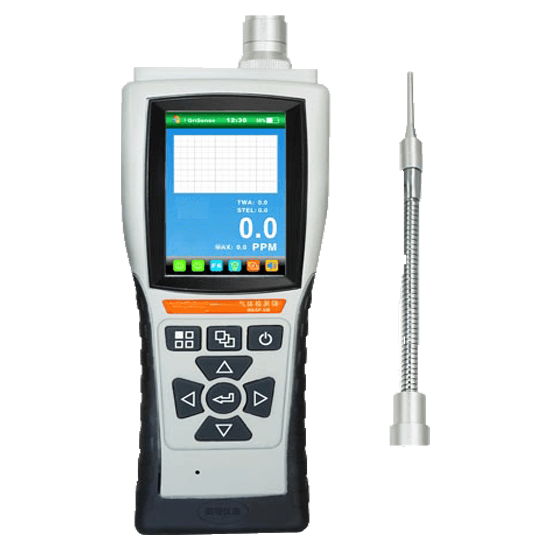

PGas-20 Series Portable Gas pump built-in single gas detector

Portable gas pump built-in single gas detector


Category:
post_tag: ,

Sent Email : sales@globeinstrument.com

PGas-20  Series Portable gas pump built-in single gas detector  is used to detect the concentration of flammable gases, oxygen gas and many kinds of toxic & harmful gases. It will alarm immediately once the detected gas concentration reaches or exceeds the preset alarm point. Users can set the low and high alarm point according to the practical need.

Main Feature

  • Smart probe design, calibration and maintenance more convenient in the future;
  • Fault, Warning, operator error, alarm will be smart tips;
  • Built-in CF calibration coefficients (VOC measurements only valid);
  • With audible alarm, visual alarm function, the status bar also displays alarm status;
  • Full-color 3.5-inch TFT screen, color LCD display and intuitive;
  • Can be both digital and curve display of gas concentration in two ways;
  • With USB communication port, you can speed 9600 bytes to communicate directly with the computer;
  • With test record function, can store a month’s measurement data and instrument or computer can view the data;
  • With alarm recording function, you can record the last four times the alarm time and type;
  • With calibration record; can record the last four times the size of the calibration time span;
  • High-capacity lithium battery-powered, rechargeable, low battery automatic shutdown;
  • Can be set high reported, underreporting, TWA, STEL, shutdown time, pump speed, etc.;
Model Range Resolution
PGas-20-HCN 0~100ppm   0~1000ppm 0.01ppm/0.1ppm/1ppm
PGas-20-NO2 0~20ppm 0.01ppm
PGas-20-BR2 0~20ppm    0~200ppm  0~500ppm

0~1000ppm  0~2000ppm

0.01ppm/0.1ppm/1ppm
PGas-20-TiCL4 0~20ppm     0~200ppm   0~1000ppm 0.01ppm/0.1ppm/1ppm
PGas-20-COCL2 0~20ppm    0~100ppm  0~200ppm  0~1000ppm  0~3000ppm 0.01ppm/0.1ppm/1ppm
PGas-20-SIH4 0~20ppm   0~50ppm 0.01ppm/0.1ppm/1ppm
PGas-20-H2O2 0~100ppm  0~500ppm  0~2000ppm 0.01ppm/0.1ppm/1ppm
PGas-20-HBr 0~20ppm   0~100ppm  0~200ppm  0~1000ppm  0~3000ppm 0.01ppm/0.1ppm/1ppm
PGas-20-HCL 0~20ppm   0~100ppm  0~200ppm  0~1000ppm  0~3000ppm 0.01ppm/0.1ppm/1ppm
PGas-20-CH2O 0~10ppm  0~1000ppm 0.01ppm/0.1ppm/1ppm
PGas-20-PH3 0~5pm      0~50ppm  0~100ppm  0~1000ppm  0~2000ppm  0~4000ppm 0.01ppm/0.1ppm/1ppm
PGas-20-VOC 0~2pm    0~20ppm  0~100ppm  0~1000ppm

0~2000ppm  0~4000ppm

0.01ppm/0.1ppm/1ppm
PGas-20-O3 0~2pm    0~5ppm  0~20ppm  0~50ppm

0~100ppm  0~200ppm

0.01ppm/0.1ppm/1ppm
Parameters Characteristics
Power supply Lithium battery (4.2V/3000mAh)
Operating Current normal current: ≤ 150mA; Alarm current: ≤ 200mA
Operating environment: Temperature -20~+55℃

Relative Humidity: 15% – 95%, non-condensing

Storage environment Temperature: -20 ~+60 ℃

Relative humidity: ≤ 90%, no condensation

Housing material PC
Dimensions 228 x 84 x 50.5mm
Weight  0.55 kg
Working Temperature -20℃~55℃
Sampling Method Flow rate up to 0.8L / min.Third gear adjustment
Precision ±2%F.S
Data store 200,000 sets of data usb high-speed transmission
Response Time ≤20s
Recovery Time ≤20s
Repeatability ≤±1%
Linearity error ≤±1%
Zero shift ≤±1%
Disp TFT color screen
Gas unit Support multiple gas unit switching
Explosion-Proof Exia II CT4
Degree of protection IP67
Alarm mode Sound light vibration
Operation time 100 hours (close the pump)
