RF-051 Series SF6 Gas Recycling Device

For high voltage,it is suitable for 72.5kv-220 kv live tank circuit-breaker, tank circuit-breaker and 110KV SF6 gas insulated switchgear(GIS)


Sent Email : sales@globeinstrument.com

RF-051 is suitable for low and medium voltage switch (10~40.5 kv) aeration cabinet; For high voltage,it is suitable for 72.5kv-220 kv live tank circuit-breaker, tank circuit-breaker and 110KV SF6 gas insulated switchgear(GIS);500kv live tank circuit-breaker and tank circuit-breaker.



  • Recycling SF6 gas, integrate functions of liquefy and store.
  • With subatomospheric pressure recycling function,improve recycling rate.
  • Provice the environmental discharge equipment of volume pump outlet.
  • To prevent oil go back,the volume pump has valve.
  • 70L tank optional,tank with weigh and heat control function.



Dimension: 930(L)*730(W)*1870(H)mm without tank; 930(L)*1040(W)*1870(H) with tank
Total Weight:220KG(without tank);380KG(with tank)
Tank:Carbon steel material,Max working pressure:4.5Mpa
Working power:Ac380V 50HZ
CE cettificate
Recycling rate 0-45Kg/h
Outlet pressure ≤3MPa
Subatomospheric pressure recycling  ≤5*10-3 Mpa(5000 pa)
Vacuum pumping 17 m3/h, ≤10 pa
64 m3/h, ≤10 pa
Mass fraction of SF6 (SF6)/%≥ 99.9
Mass fraction of air/%≤ 0.04
Mass fraction of carbon tetrafluoride(CF4)/%≤ 0.04
Moisture Mass fraction of moiture/%≤ 0.0005
Dew point/°C ≤ -49.5
Mass fraction of acidity (by HF)/% ≤ 0.00002
Decomposable fluoride (by HF) /% ≤ 0.00010
Mass fraction of mineral oil/% ≤ 0.0004
Toxicity Non-toxic through biological experiment
RF-051 Series SF6 Gas Recycling Device Hand-operation

RF-051 Series SF6 Gas Recycling Device Hand-operation

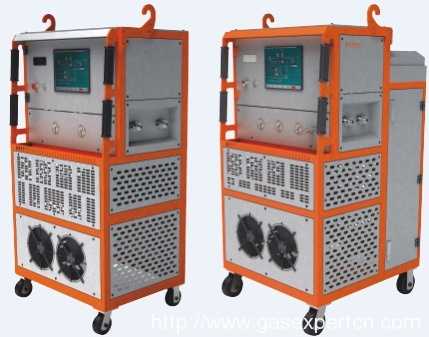

RF-051 Series SF6 Gas Recycling Device Touch screen Operation

RF-051 Series SF6 Gas Recycling Device Touch screen Operation

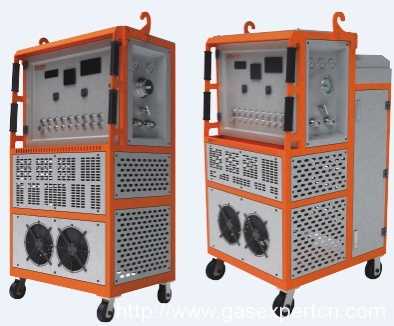

rf051-Button-Operation

rf051-Button-Operation
