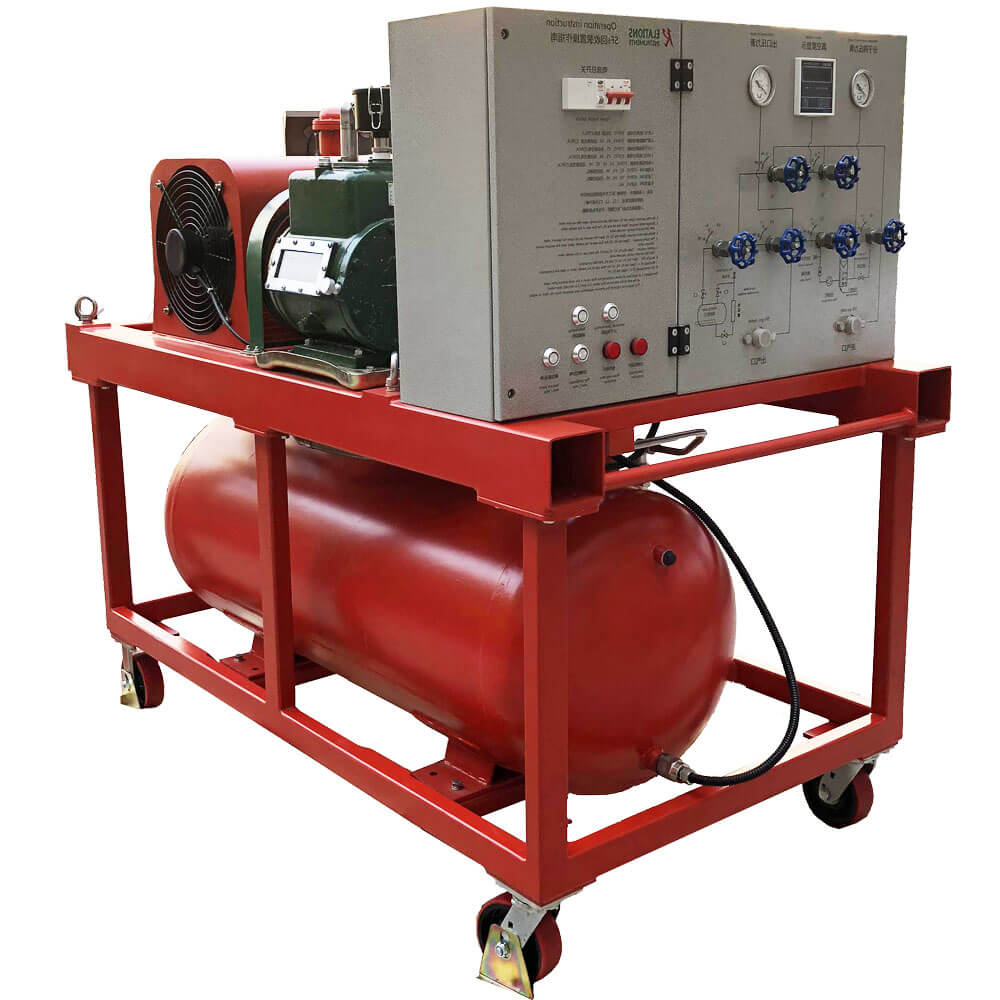

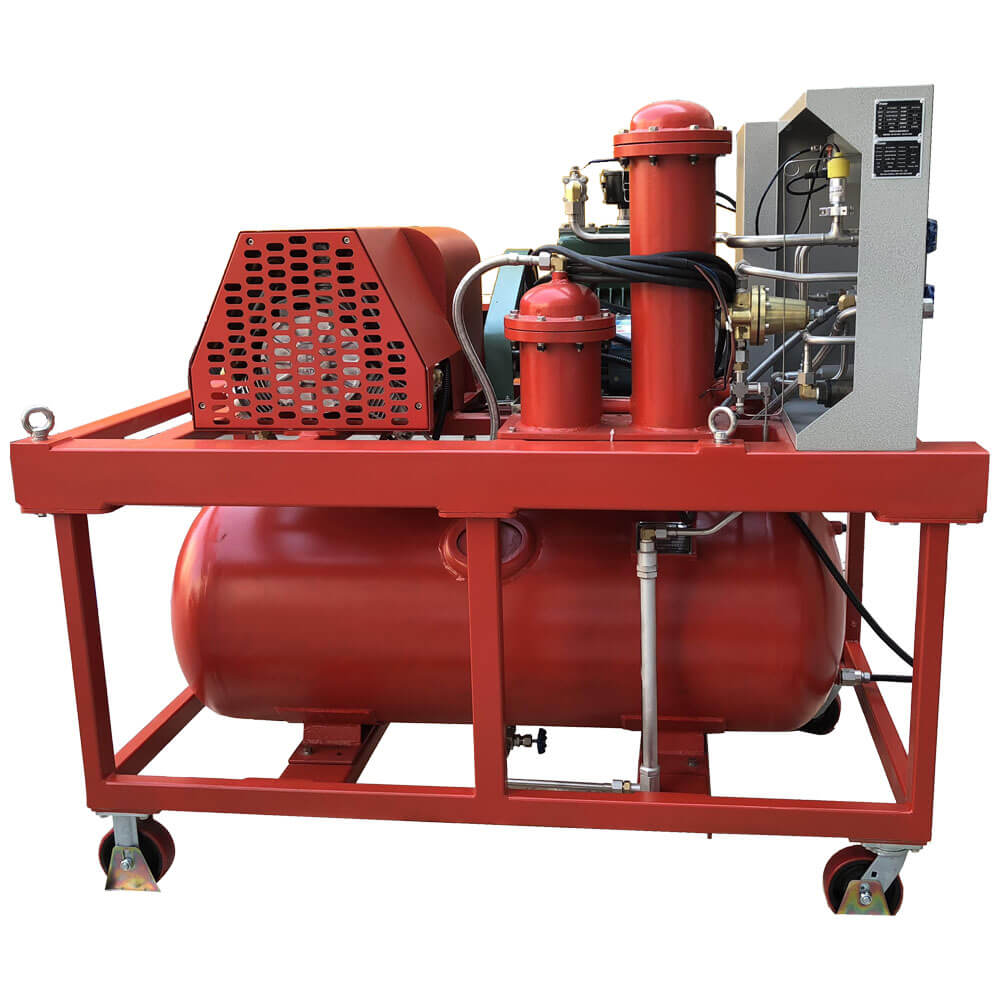

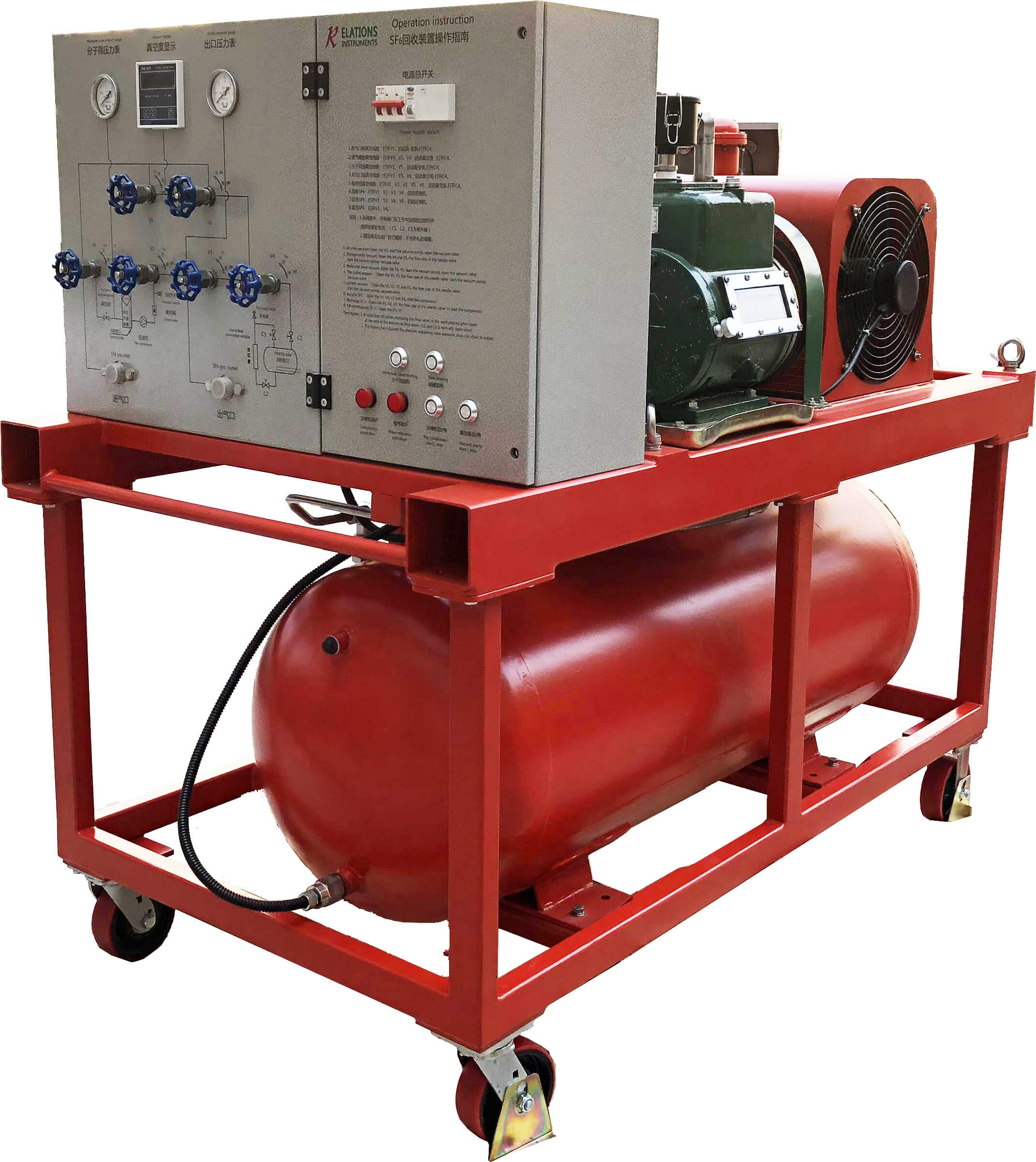

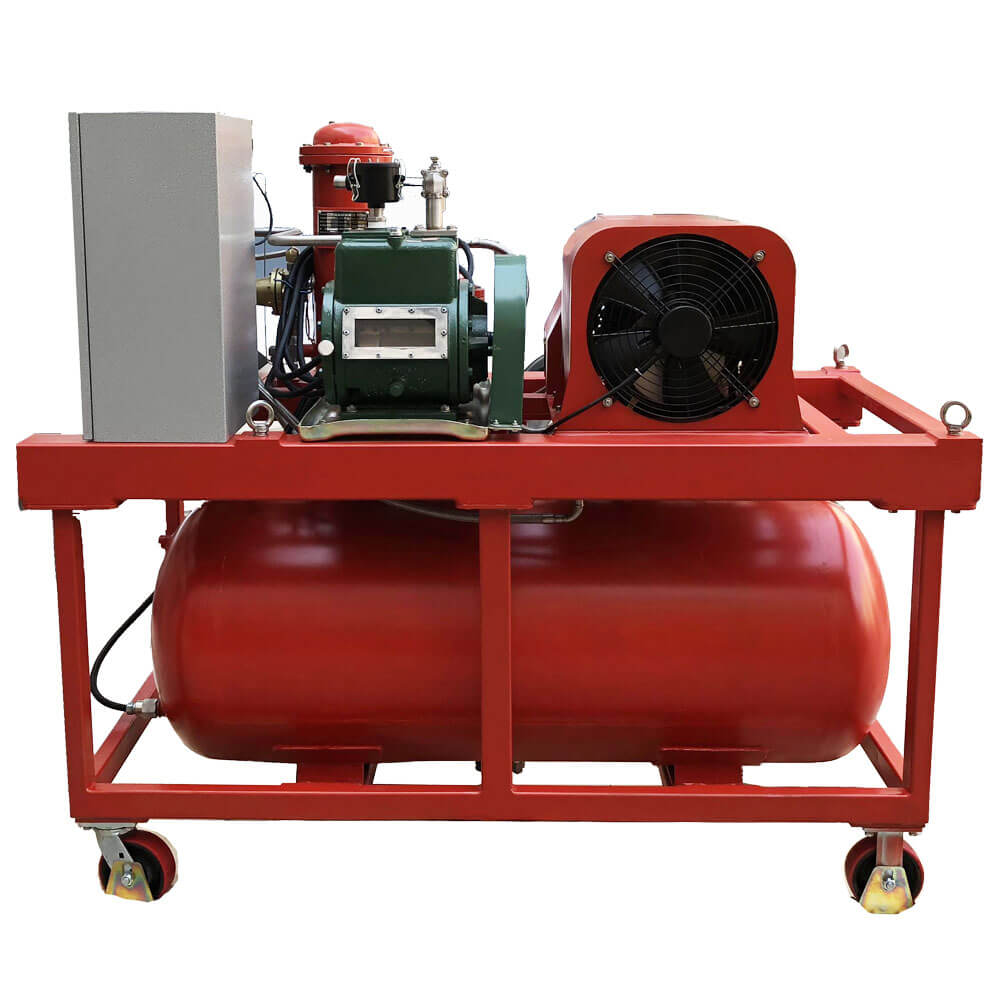

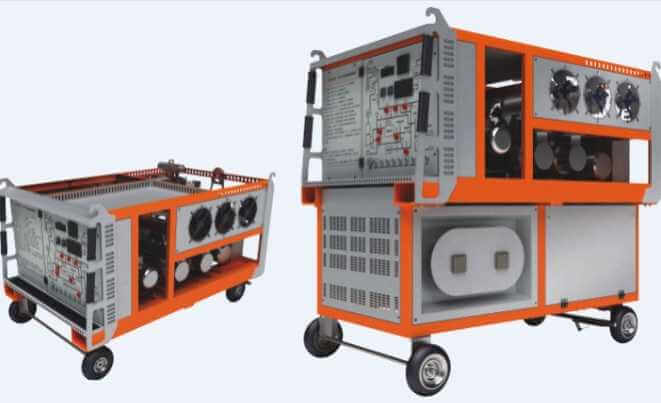

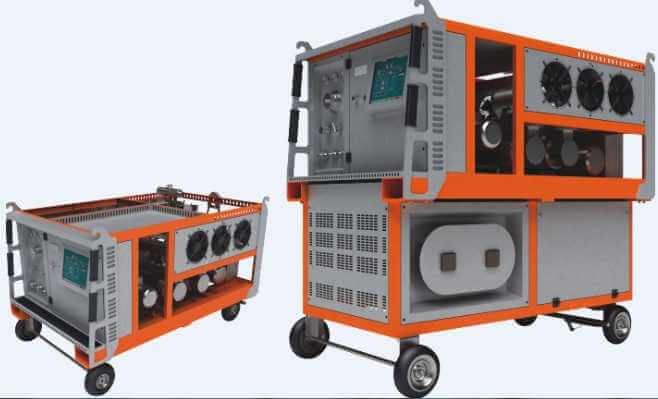

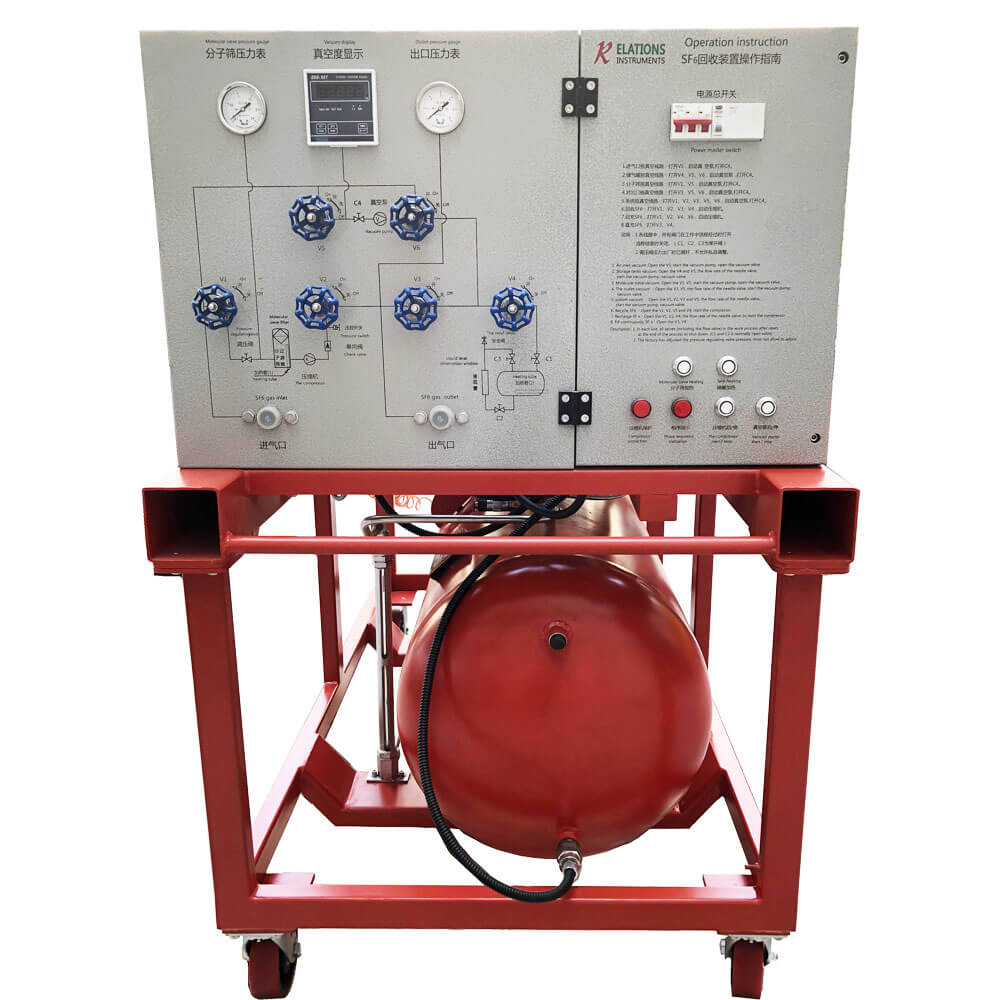

RF-151 Series SF6 Gas Recovery Device
It is suitable for 72.5kv,110kv,220 kv ,330kv live tank circuit-breaker, tank circuit-breaker and SF6 gas insulated switchgear(GIS);500kv live tank circuit-breaker and tank circuit-breaker.
Sent Email : sales@globeinstrument.com
RF-151 is suitable for low and medium voltage switch (10~40.5 kv) aeration cabinet; For high voltage,it is suitable for 72.5kv,110kv,220 kv ,330kv live tank circuit-breaker, tank circuit-breaker and SF6 gas insulated switchgear(GIS);500kv live tank circuit-breaker and tank circuit-breaker.
- Recycling SF6 gas, integrate functions of liquefy and store.
- Liquid Filler,just 5-8 mins to full in cylinder.
- Provice the environmental discharge equipment of volume pump outlet.
- To prevent oil go back,the volume pump has valve.
| Dimension: 2030(L)*1230(W)*1260(H)mm without tank; 2030(L)*1230(W)*1930(H) with tank | |
| Tank:Carbon steel material,Max working pressure:4.5Mpa | |
| CE cettificate | |
| Recycling rate | 0-60Kg/h |
| Outlet pressure | ≤3MPa |
| Vacuum compressor | 15 m3/h, ≤5*10-3 Mpa(5000 pa) |
| 20 m3/h, ≤5*10-5 Mpa(50 pa) | |
| Vacuum pumping | 17 m3/h, ≤10 pa |
| 64 m3/h, ≤10 pa | |
| Tank | Capacity 120L, Carbon steel material |
| Capacity 300L, Carbon steel material | |
| Capacity 600L, Carbon steel material | |
| Capacity 1000L, Carbon steel material | |
| No tank | |
| Mass fraction of SF6 (SF6)/%≥ | 99.9 | |
| Mass fraction of air/%≤ | 0.04 | |
| Mass fraction of carbon tetrafluoride(CF4)/%≤ | 0.04 | |
| Moisture | Mass fraction of moiture/%≤ | 0.0005 |
| Dew point/°C ≤ | -49.5 | |
| Mass fraction of acidity (by HF)/% ≤ | 0.00002 | |
| Decomposable fluoride (by HF) /% ≤ | 0.00010 | |
| Mass fraction of mineral oil/% ≤ | 0.0004 | |
| Toxicity | Non-toxic through biological experiment | |
