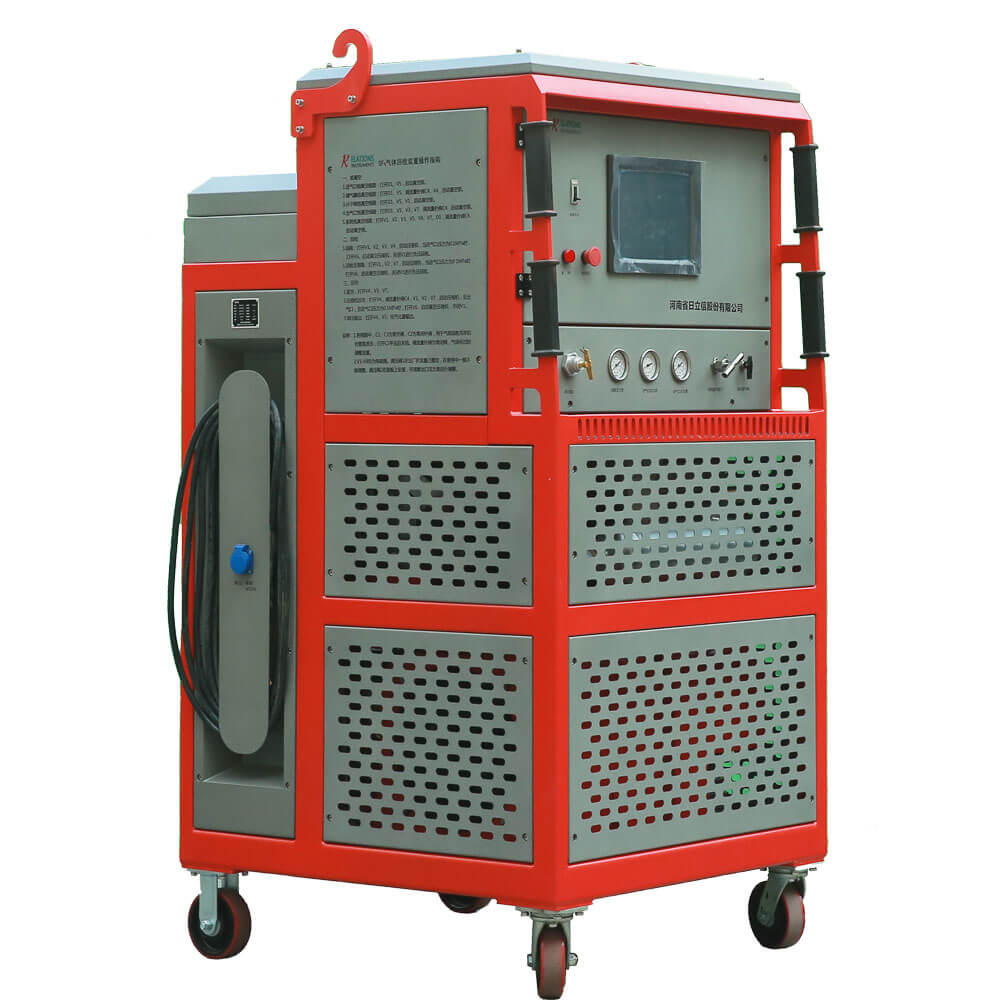

RF-051 Series SF6 Recovery Device

For high voltage,it is suitable for 72.5kv-220 kv live tank circuit-breaker, tank circuit-breaker and 110KV SF6 gas insulated switchgear(GIS)


Sent Email : sales@globeinstrument.com

RF-051 SF6 recovery device used for the sf6 gas recovery, filter, vacuuming and recharging. Used during the manufacturing, installation, and maintenance of SF6 Gas Insulated Switchgear.

  • Recycling SF6 gas, integrate functions of liquefy and store.
  • With subatomospheric pressure recycling function,improve recycling rate.
  • Provice the environmental discharge equipment of volume pump outlet.
  • To prevent oil go back,the volume pump has valve.
  • 70L tank optional,tank with weigh and heat control function.



Dimension: 930(L)*730(W)*1870(H)mm without tank; 930(L)*1040(W)*1870(H) with tank
Total Weight:220KG(without tank);380KG(with tank)
Tank:Carbon steel material,Max working pressure:4.5Mpa
Working power:Ac380V 50HZ
CE cettificate
Recycling rate0-45Kg/h
Outlet pressure≤3MPa
Subatomospheric pressure recycling ≤5*10-3 Mpa(5000 pa)
Vacuum pumping17 m3/h, ≤10 pa
64 m3/h, ≤10 pa
Mass fraction of SF6 (SF6)/%≥99.9
Mass fraction of air/%≤0.04
Mass fraction of carbon tetrafluoride(CF4)/%≤0.04
MoistureMass fraction of moiture/%≤0.0005
Dew point/°C ≤-49.5
Mass fraction of acidity (by HF)/% ≤0.00002
Decomposable fluoride (by HF) /% ≤0.00010
Mass fraction of mineral oil/% ≤0.0004
ToxicityNon-toxic through biological experiment

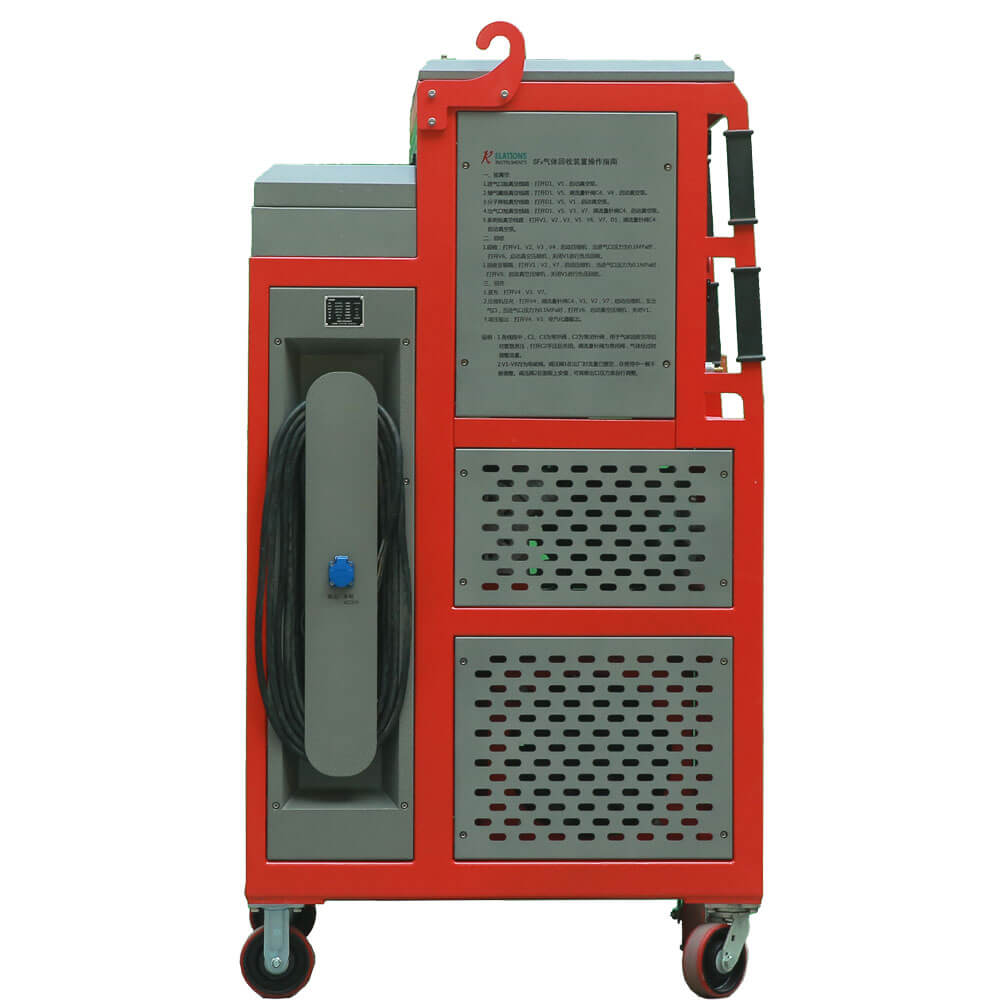

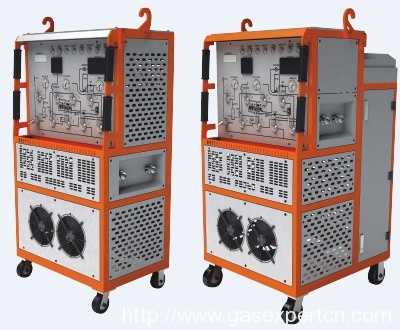

RF-051 Series SF6 Gas Recycling Device Hand-operation

RF-051 Series SF6 Gas Recycling Device Hand-operation

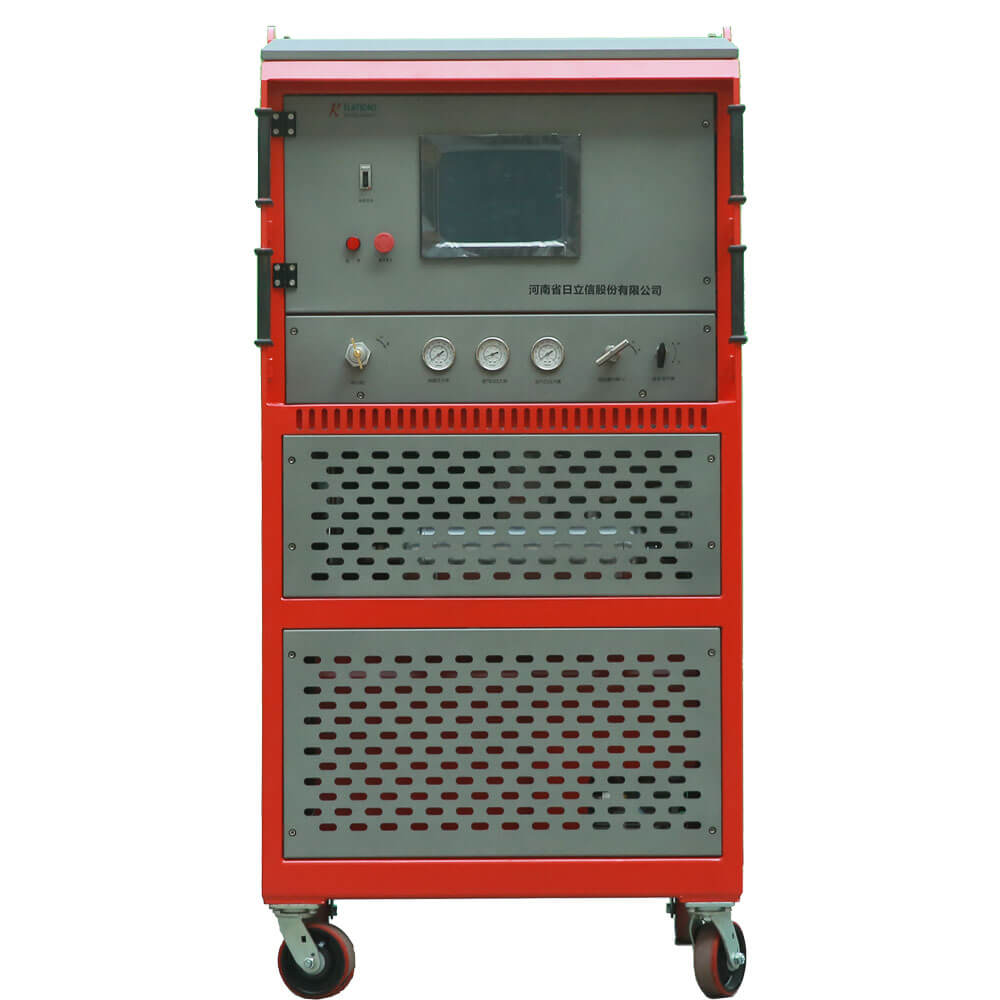

RF-051 Series SF6 Gas Recycling Device Touch screen Operation

RF-051 Series SF6 Gas Recycling Device Touch screen Operation

rf051-Button-Operation

rf051-Button-Operation
