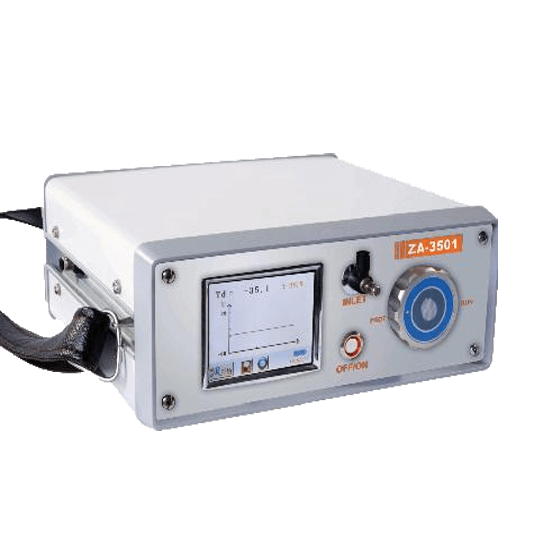

ZA-3501 Packsack SF6 Gas Dew Point Meter

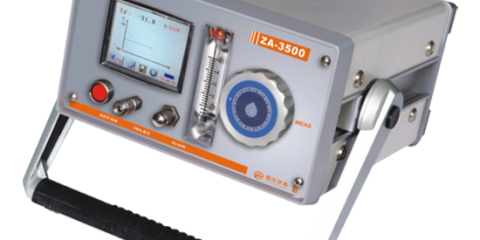

ZA-3501 Packsack Dew Point Meter same as ZA-3500


Sent Email : sales@globeinstrument.com

ZA-3501 takes high-performance dew point transmitter and integrates multiple up-to-date research achievement and proprietary technology in measurement of SF6 gas dew point. It has the function of SF6 moisture automatic conversion in standard condition and software upgrading. It is one of existing dew point measurement instruments with the most advanced technique and the most powerful function.
Non-toxic discharge device is optional to protect your working environment

The (sulfur hexafluoride) SF6 gas dew point meter is primarily used to detect trace moisture levels within SF6 gas in high-voltage electrical equipment. This ensures that the water vapor content of SF6 inside the GIS (Gas Insulated Switchgear) room remains within normal conditions.



  • Micro automatic conversion in standard condition (ppms accords with the latest national standard).
  • Self-calibrating of zero point and slope at starting up (proprietary technology).
  • Calibration of dew point with full-scale range by single-point method (proprietary technology).
  • Sensor drying protection device (proprietary technology).
  • Storage and printing of measurement data.
  • Intelligent prompting of electricity quantity, intelligent charging protection.
  • Lithium battery supply super-long standby.
  • SF6 gas non-toxic discharge device internal and print function (optional).



Measurement of dew point:-80~+20℃when the dew point temperature is lower than 0℃ .The output of sensor is frost point
Typical precision:better than ±1℃
Response time(Td):When the gas temperature is 20℃:-60→-20℃   5s(63%), 10s(90%)                        -20→-60℃   45s(63%),10min(90%)
Operation environment:
Temperature-10~+60℃
Relative humidity0~100%RH(non condensation)
Pressureone barometric pressure
Parameters of complete appliance:
Working flowno influence
Power supplybuilt-in lithium battery (7.2V 8000mAh), AC/DC
Using time>10 h
Digital outputRS232C  USB2.0
Printing*24 characters/row, stylus printer
Dimensions273mm×257mm×143mm
WeightAbout5.6kg

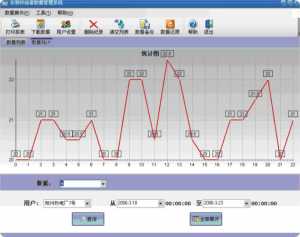

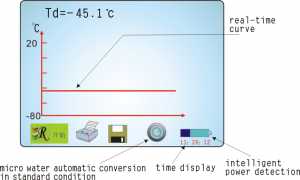

12

22

  • Real-time curve display
  • Printing of measured data*
  • Storage of measured data
  • Micro water automatic conversion in standard condition (ppms accords with the latest national standard)
  • System time display
  • Display of electricity quantity
  • Setting of printing data*
  • Network communication
  • Chinese and English bilingual interface
