ZA-2500 On-line Dew Point Meter
ZA-2500 on-line dew point meter,based on microprocessor,adopts patent polyester film sensor Drycap and the advanced technology of self-calibration function.
Sent Email : sales@globeinstrument.com
ZA-2500 on-line dew point meter,based on microprocessor,adopts patent polyester film sensor Drycap and the advanced technology of self-calibration function.It is equipped with precision sampling system and intelligent digital processing display and control unit. It has the features of long-term stability and reliability, wide measurement range and quick response, etc. Besides, it is anti-condensation, resisting dust particles and will not influenced by oil and most chemical gases. It is an ideal option for measuring dew point in the dry environment.
- Advanced humidity sensitive component (advanced material).
- Prevention of dew condensation.
- Long-term stability and reliability in measurement of low-temperature dew point.
- Resistant against high pressure, having function of temperature compensation.

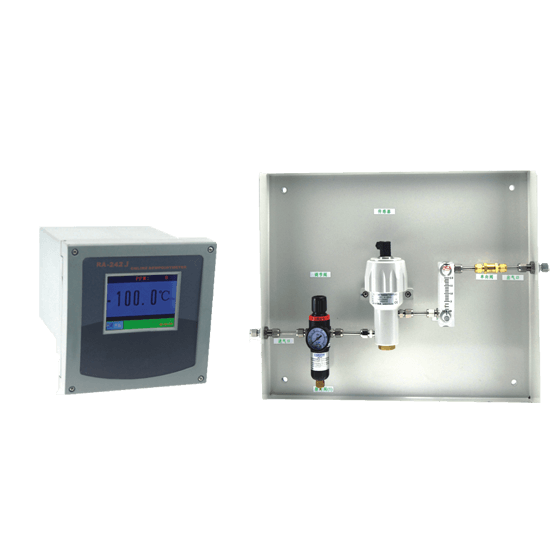

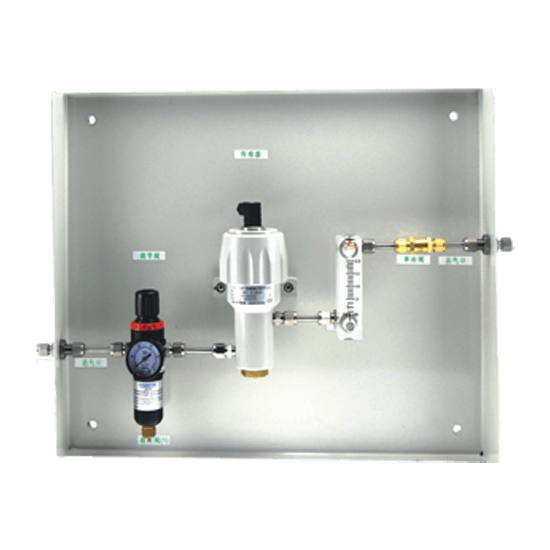

- Flexible and reliable humanized special-designed sampling system .
- Quick response, simple operation and low maintenance load.
- Large screen display and operation by touch screen, Chinese & English menu display.
- Off-gas recovery design for laboratory instruments, speed response,precise control and simple operation.
| Measurable Gas | H2，O2，N2，Ar，He，air &etc.non-acid, non alkaline, non corrosive gases |
| Dew point temperature | （Td℃） |
| Dew point range | -100℃～20℃ |
| Typical precision | higher than ±2℃ |
| Repeatability | ±1℃ |
| Analog output | 4～20mA |
| Sensor protection | Stainless steel sintered filter |
| Protection grade of shell | IP65 (NEMA4) |
| Temperature | -20～+60℃ |
| Relative humidity | 0～100%RH |
| Pressure | 0～40Mpa |
| Flow rate of sample gas | No influence |
| Mode of power supply | AC220V |
| Dimensions | 500mm×400mm×70mm |
| Weight | about 7.5kg |
| Installation mode | Wall mounting |
